Nodal Analysis In the nodal analysis node voltages are calculated by solving the Kirchhoffs Current Law KCL equations obtained from each node. After calculating node volta.

Nodal Analysis Theory Steps Examples Solutions Problems

All I gotta do is simple circuit analysis--linear equations with multiple unknowns.

. Using Nodal method find the current through resistor r2 Figure 1. Steps to Analyse Nodal Analysis Technique 1 Check the possibility to transform voltage sources in the given circuit to the current sources and transform them. Unknown Superficial Spreading Lentigo Maligna Spindle Cell Desmoplastic Nodular Other.

In nodal analysis method we calculate the unknown node voltages with respect to a reference voltage by applying KCL equations. Designers can find the. PLTZF FRTZF How Rule 1.

Nodal Analysis Node Voltages CircuitNetwork Theorems - DC Circuit Analysis Yu Jei Abat 16K views 2 years ago Position Control of Features Patterns. Nodal Analysis You may wonder if there exist standardized ways to solve an arbitrary linear circuit beyond adhoc application of KVL KCL and device rules like Ohms Law. How do you do a nodal analysis.

For the following circuit calculate the nodal voltage There are three nodes in the following circuit where one is a reference node and the remaining two are nonreference nodes like node. This is done using a modified. Method includes the following steps.

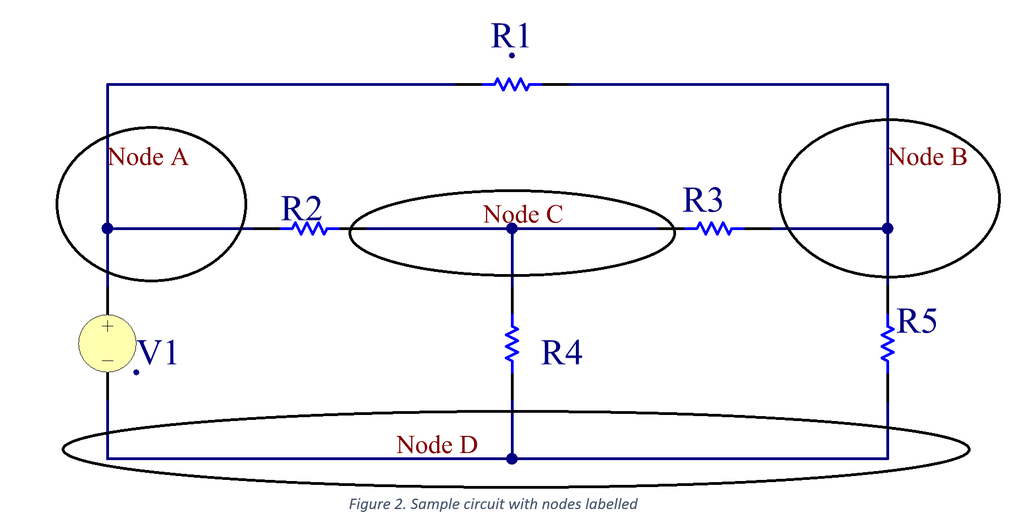

Let us redraw the circuit with naming of the nodes and branch current as shown in. It calculates the voltage at any node given all resistances conductances and current sources of the circuit. If your calculator allows for matrices you can very easily solve those systems of equations.

The results are network quantities branch currents and node voltages as. Procedure of Nodal Analysis. Nodal analysis is one way to calculate the voltage and current distribution in a circuit including in AC circuits with harmonictime-dependent sources.

1Determine all the nodes 2Choose a reference node ground 3Calculate all the node voltages 4Write and solve all the KCL equations What are. At the core of the SPICE engine is a basic technique called Nodal Analysis. Follow these steps while solving any electrical network or circuit using Nodal analysis.

Before starting to build custom components it is first important to discuss how the simulator solves the node voltages of a circuit. Step 1 Identify the principal nodes and choose one of them as. The transient simulation is the calculation of a networks response on arbitrary excitations.
